Metal Kasa Güç Kaynakları

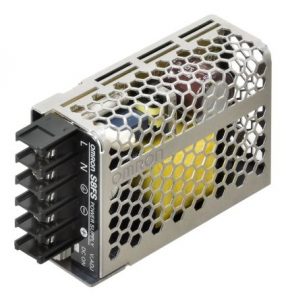

OMRON S8FS-C SERİSİ

Ekonomik Fiyatlarla Yüksek Güvenilirlik

Geniş güç aralığı (15, 25, 35, 50, 75, 100, 150, 200, 350 W) ve DC çıkış gerilimi (5, 12, 15, 24, 36 veya 48 VDC)
Geniş giriş aralıkları: 100 – 120 VAC ve 200 – 240 VAC
Aşırı yük, aşırı gerilim ve kısa devre koruması
Montaj braketleriyle DIN raya kolay montaj (ayrı olarak satılmaktadır)
Küresel standartlar: CE’ye uygundur (bütün modeller), UL (bütün modeller) ve CCC (15 – 150 W modeller) onaylıdır
EMI EN 55011 Sınıf B uyumlu (15 – 150 W modeller)

S8FS-C Özellikler

S8FS-C01505J	Power supply, 15 W, 100-240 VAC input, 5 VDC, 3 A output, Front terminal
S8FS-C01512J	Power supply, 15 W, 100-240 VAC input, 12 VDC, 1.3 A output, Front terminal
S8FS-C01524J	Power supply, 15 W, 100-240 VAC input, 24 VDC, 0.7 A output, Front terminal
S8FS-C02512	Power supply, 25 W, 100-240 VAC input, 12 VDC, 2.1 A output, Upper terminal
S8FS-C03512J	Power supply, 35 W, 100-240 VAC input, 12 VDC, 3 A output, Front terminal
S8FS-C03524	Power supply, 35 W, 100 to 240 VAC input, 24 VDC, 1.5 A output, Upper terminal
S8FS-C03524J	Power supply, 35 W, 100-240 VAC input, 24 VDC, 1.5 A output, Front terminal
S8FS-C05012	Power supply, 50 W, 100-240 VAC input, 12 VDC, 4.2 A output, Upper terminal
S8FS-C05012J	Power supply, 50 W, 100-240 VAC input, 12 VDC, 4.2 A output, Front terminal
S8FS-C05024	Power supply, 50 W, 100-240 VAC input, 24 VDC, 2.2 A output, Upper terminal
S8FS-C05024J	Power supply, 50 W, 100-240 VAC input, 24 VDC, 2.2 A output, Front terminal
S8FS-C07512	Power supply, 75 W, 100 to 240 VAC input, 12 VDC, 6.2 A output, Upper terminal
S8FS-C10012	Power supply, 100 W, 100-240 VAC input, 12 VDC, 8.5 A output, Upper terminal
S8FS-C10012J	Power supply, 100 W, 100-240 VAC input, 12 VDC, 8.5 A output, Front terminal
S8FS-C10024	Power supply, 100 W, 100-240 VAC input, 24 VDC, 4.5 A output, Upper terminal
S8FS-C10024J	Power supply, 100 W, 100-240 VAC input, 24 VDC, 4.5 A output, Front terminal
S8FS-C15012	Power supply, 150 W, 100-240 VAC input, 12 VDC, 12.5 A output, Upper terminal
S8FS-C15012J	Power supply, 150 W, 100-240 VAC input, 12 VDC, 12.5 A output, Front terminal
S8FS-C15024	Power supply, 150 W, 100 to 240 VAC input, 24 VDC, 6.5 A output, Upper terminal
S8FS-C15024J	Power supply, 150 W, 100-240 VAC input, 24 VDC, 6.5 A output, Front terminal
S8FS-C20012	Power supply, 200 W, 100 to 240 VAC input, 12 VDC, 17 A output, Upper terminal
S8FS-C20024	Power supply, 200 W, 100 to 240 VAC input, 24 VDC, 8.8 A output, Upper terminal
S8FS-C20024J	Power supply, 200 W, 100-240 VAC input, 24 VDC, 8.8 A output, Front terminal
S8FS-C35012	Power supply,350 W, 100-240 VAC input, 12 VDC, 29 A output, Upper terminal
S8FS-C35012J	Power supply,350 W, 100-240 VAC input, 12 VDC, 29 A output, Front terminal
S8FS-C35024	Power supply, 350 W, 100-240 VAC input, 24 VDC, 14.6 A output, Upper terminal
S8FS-C35024J	Power supply, 350 W, 100-240 VAC input, 24 VDC, 14.6 A output, Front terminal
S8FS-C35048	Power supply, 350 W, 100 to 240 VAC input, 48 VDC, 7.32 A output, Upper terminal
S8FS-C35048J	Power supply, 350 W, 100-240 VAC input, 48 VDC, 7.32 A output, Front terminal
